Modular steel grids

Marston Mat

Instant ground stabilization for mud, sand & soft soils

grelle metalliche 1 genovese umberto

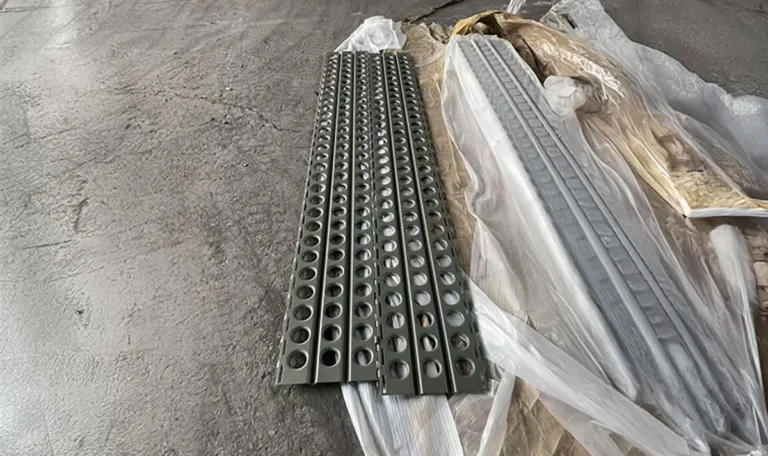

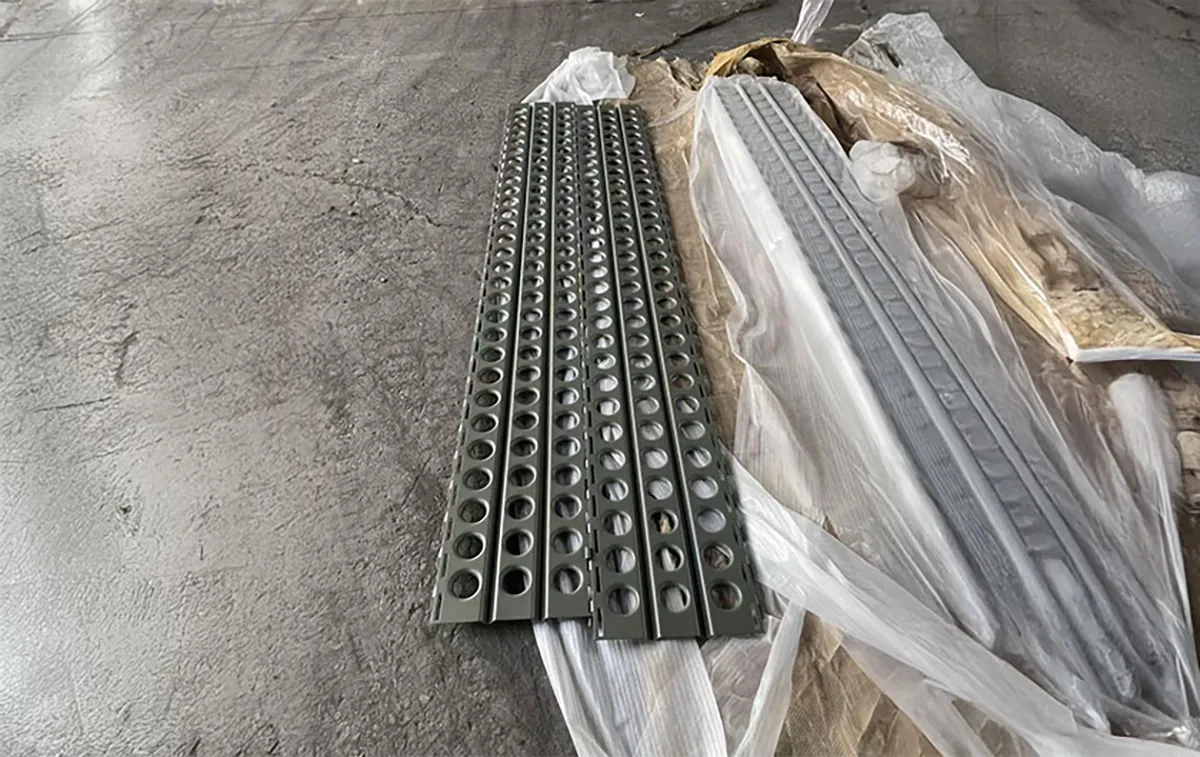

Modular steel grids, also known as Marston Mat, are the ideal solution for stabilizing muddy, sandy, and low load-bearing terrains. Designed to improve accessibility and mobility in extreme conditions, these systems make even the most difficult terrains passable. Thanks to their robustness, resilience, and long-lasting performance, modular grids are essential for those needing to stabilize surfaces, both in civilian and professional sectors.

Modular steel grids represent the practical, solid, and professional solution for ensuring safe mobility on unstable grounds. Whether in emergency situations or day-to-day operations, they are the ideal choice to improve accessibility in extreme conditions.

Find out more
grelle metalliche 1 genovese umberto

Applications of Modular Steel Grids

Marston Mat grids are versatile and suitable for many sectors, including:

Ideal for quickly setting up emergency runways, temporary roads, and maneuver areas in disaster scenarios.

Ideal for quickly setting up emergency runways, temporary roads, and maneuver areas in disaster scenarios.

Used to create drivable surfaces on low load-bearing grounds, providing secure access even in difficult conditions.

Essential for providing access to remote locations or hard-to-reach facilities where the terrain is unstable.

Used to create stable access points for heavy machinery and equipment on unstable grounds, ensuring smooth logistics.

Facilitate the movement of tractors and agricultural machinery through muddy, sandy, or difficult terrains.

Used to stabilize pedestrian and vehicular areas in temporary outdoor spaces, enhancing safety and mobility.

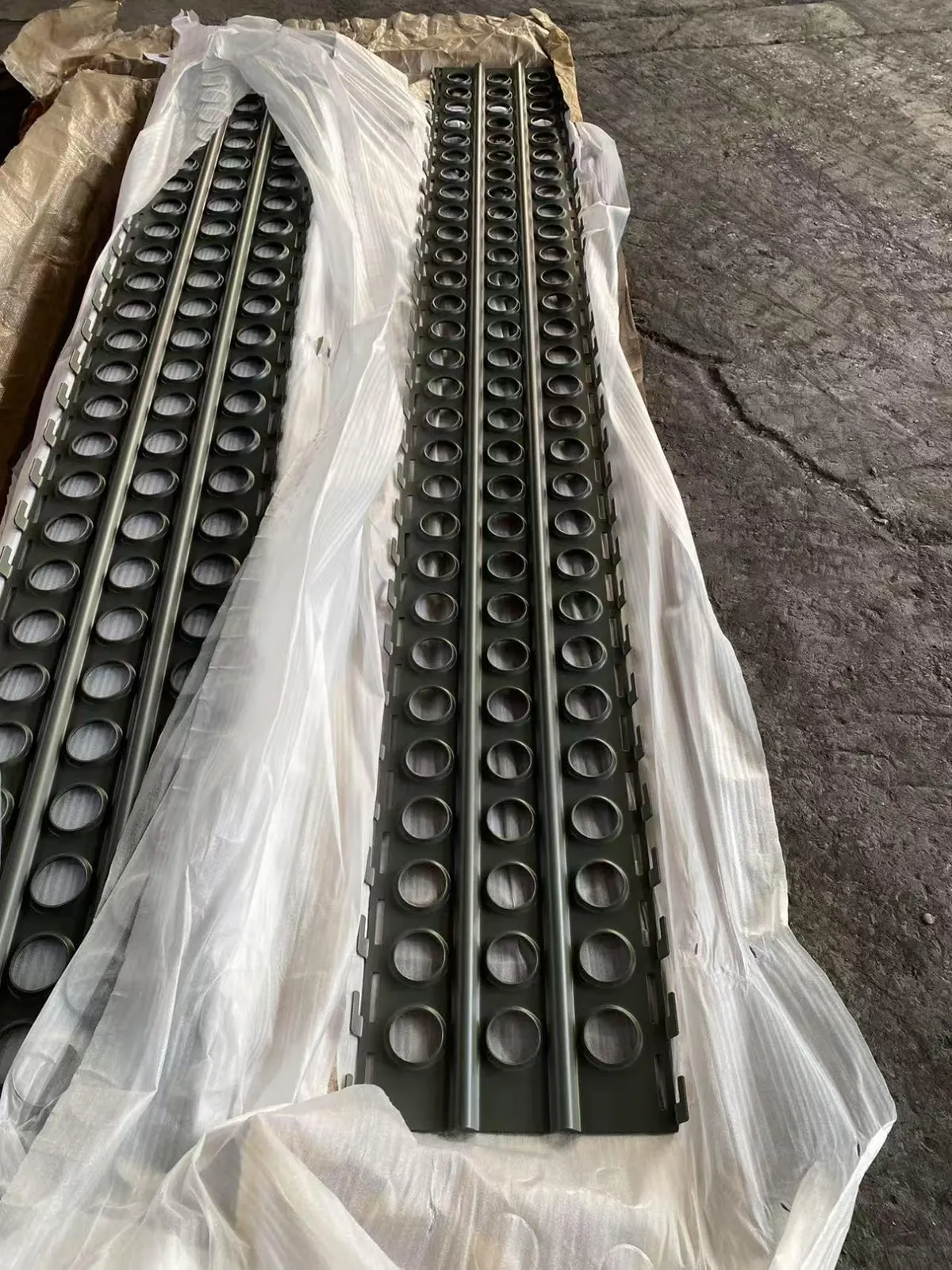

Technical Features of Modular Steel Grids

Made from S235JR UNI EN 10025 steel with a thickness of 3.5 mm, these grids offer high load-bearing capacity and superior durability, resisting wear and environmental elements.

Made from S235JR UNI EN 10025 steel with a thickness of 3.5 mm, these grids offer high load-bearing capacity and superior durability, resisting wear and environmental elements.

The grids undergo a hot phosphate treatment process, including degreasing, pickling, washing, passivation, and drying. Then, a powder polyester coating in matte green is applied, providing a protective layer of ≥35 microns, ensuring resistance to corrosion, wear, and external elements.

Standard dimensions of the modular steel grids are 3040 mm x 417 mm, ensuring a perfect fit for all installation needs.

Each grid is supplied with 4 steel fasteners, ensuring a stable and durable installation that maintains safety and stability over time.

Key Benefits

Modular steel grids offer many advantages that make them indispensable across various industries:

Modularity and Quick Assembly

Grids are easy to install and allow for rapid, secure assembly.

High Mechanical Resistance and Long Durability

Designed to withstand intensive use, ensuring a long operational lifespan.

Vehicle Mobility Safety

Ensure that vehicles can safely move across challenging terrains, maintaining safety at all times.

Complete Protection Against Corrosion and External Elements

Thanks to the corrosion treatment, grids are protected from rain, humidity, and weather elements.
